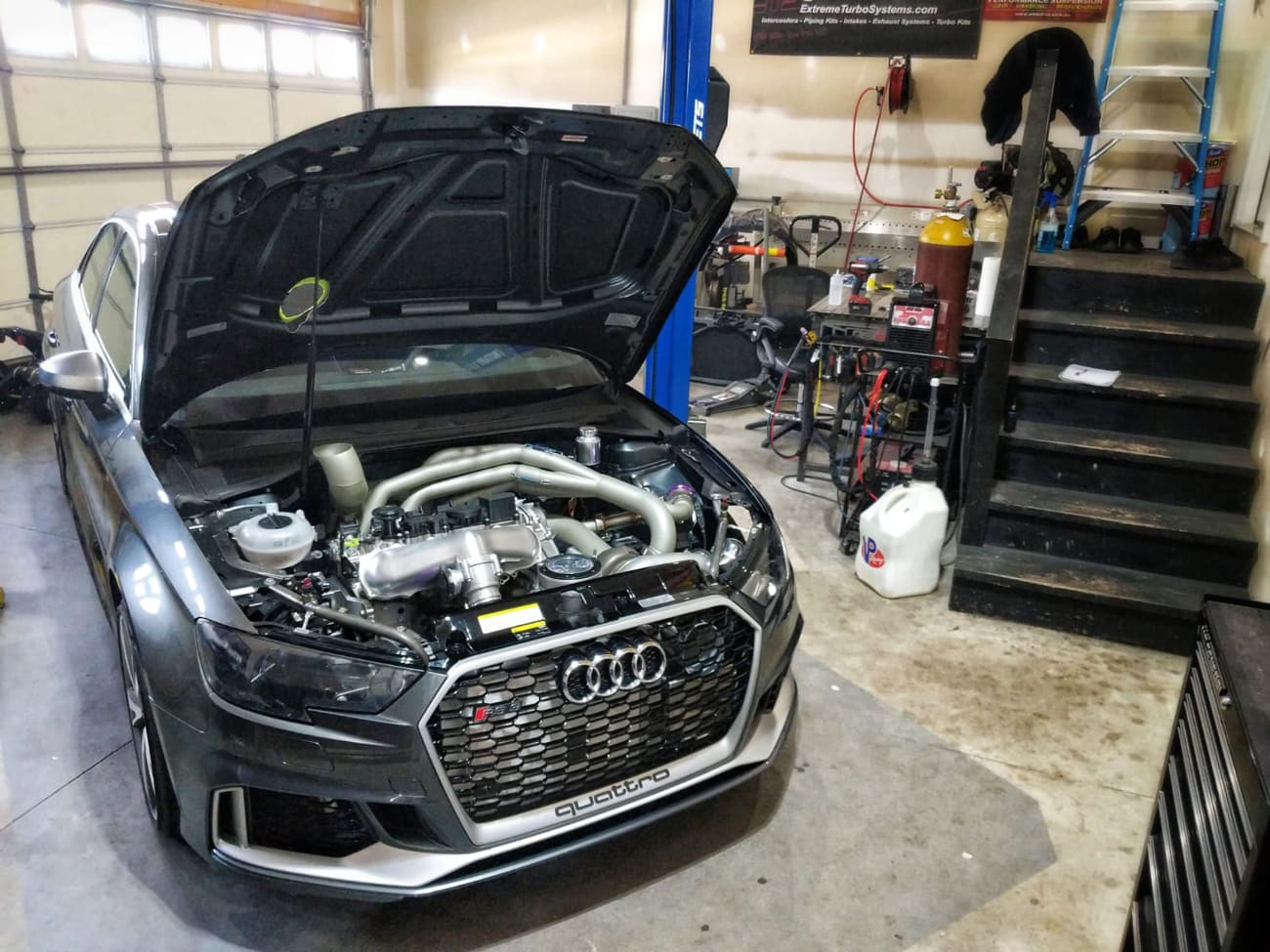

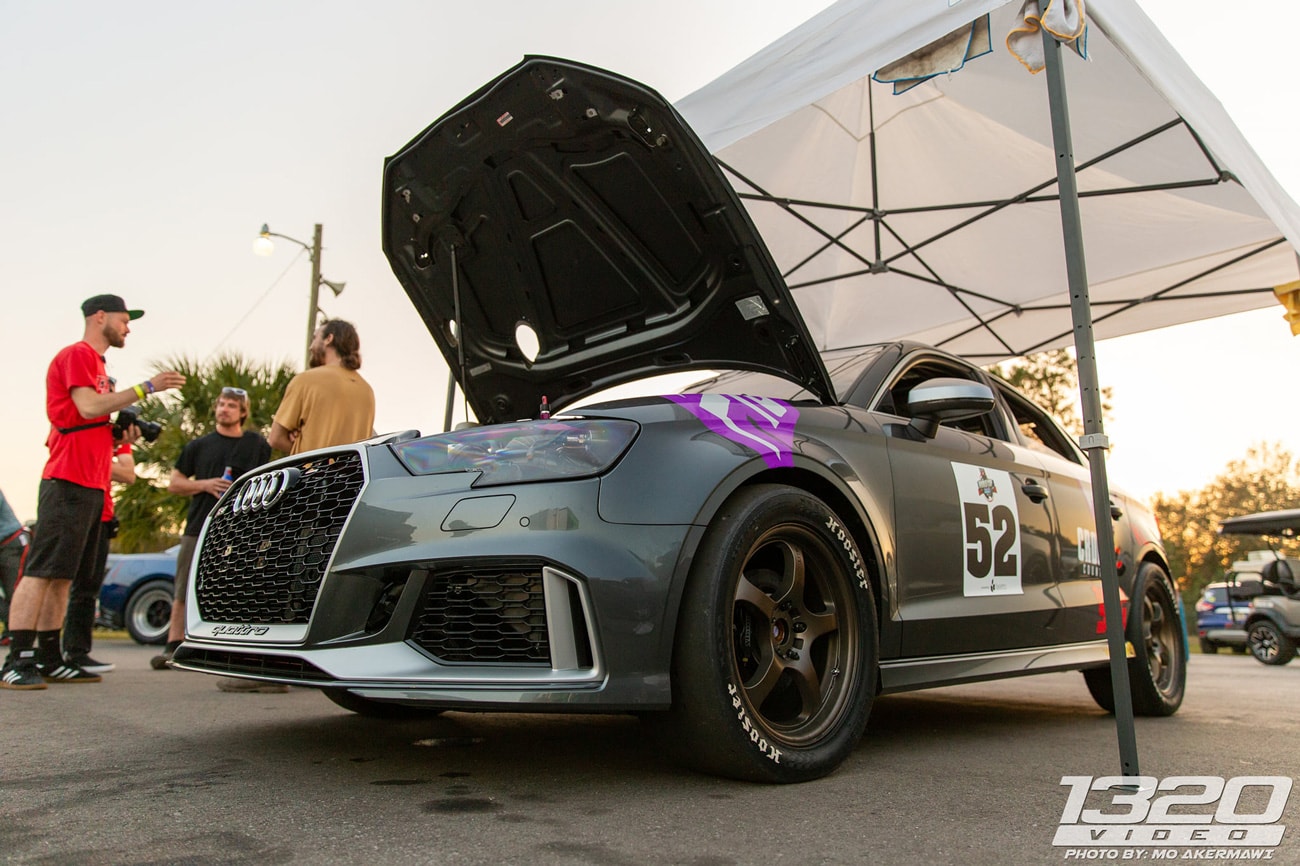

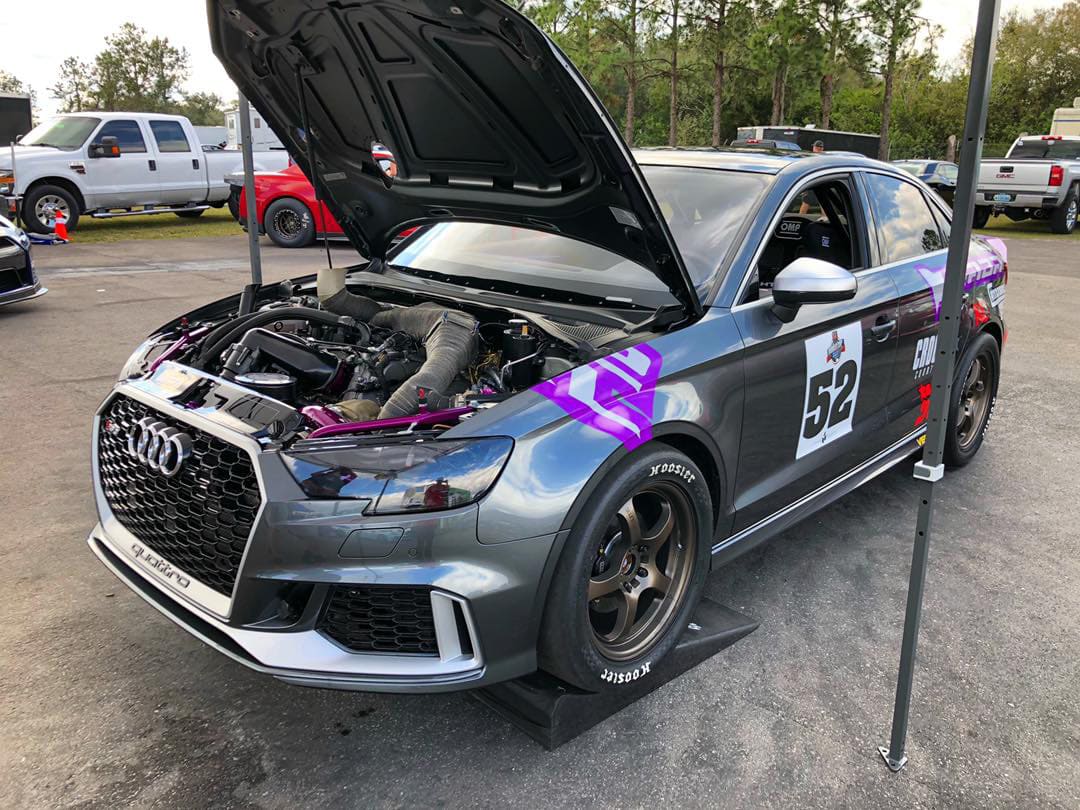

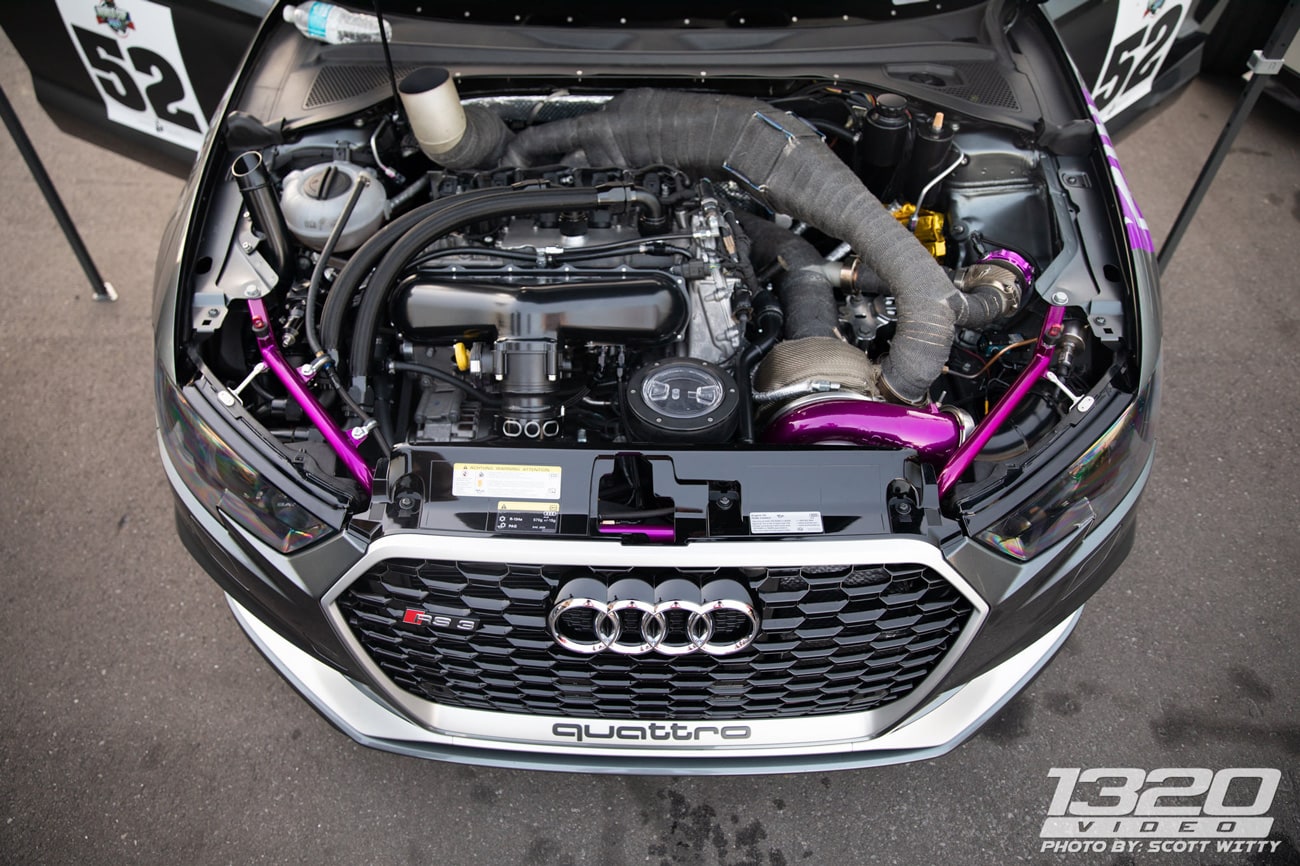

Every aspect of Kyle’s Audi RS3 was worked over – from a fully built motor, custom fabrication work on the turbo kit, air-water intercooler, custom chromoly roll cage, parachute mount, custom carbon/carbon drag brakes, built twin clutch transmission, mil-spec wiring harness and more.
Turbo / Induction / Cooling

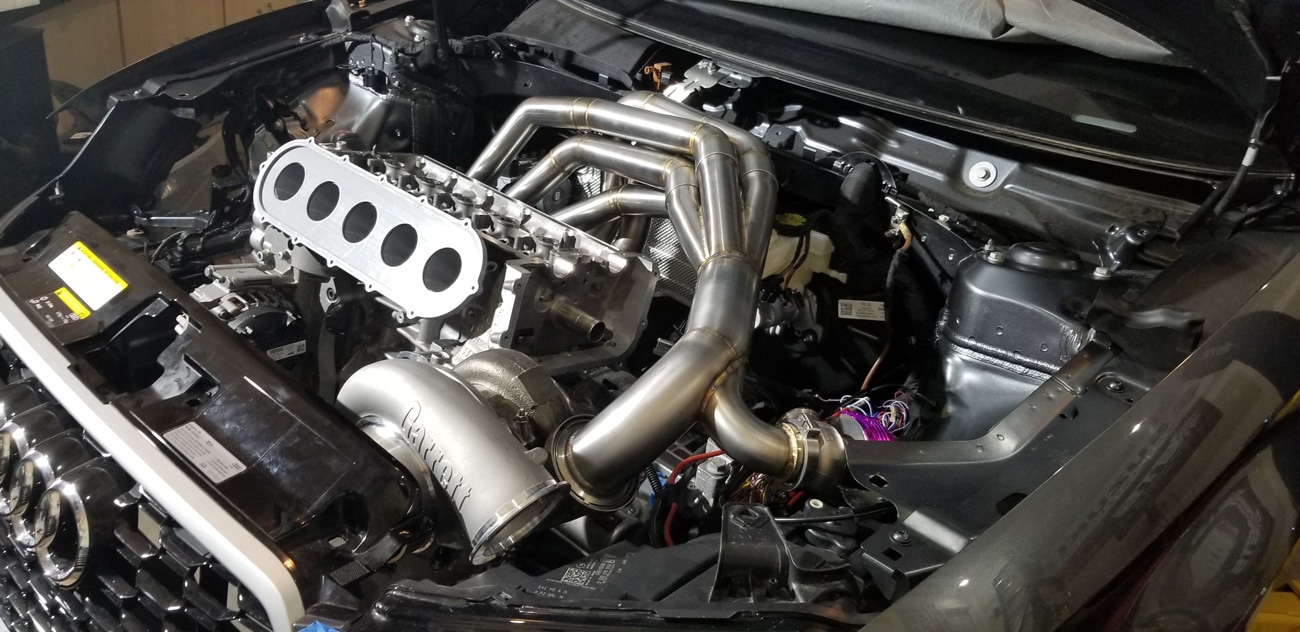

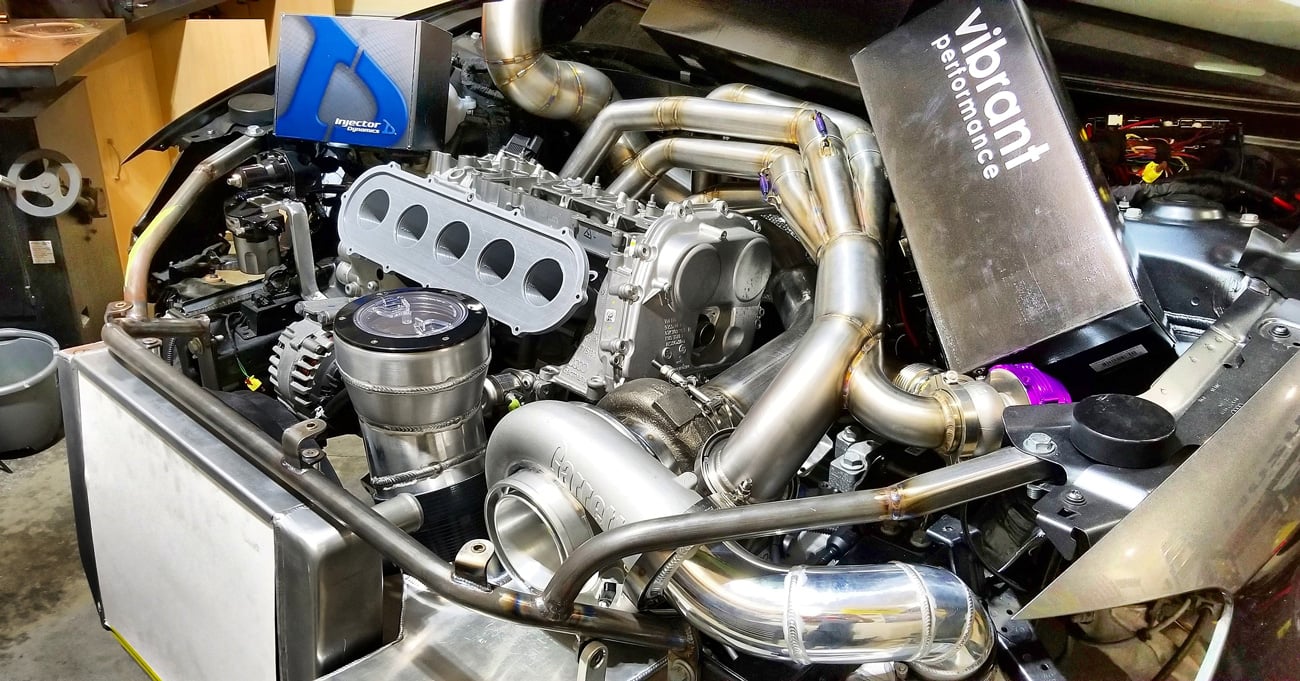

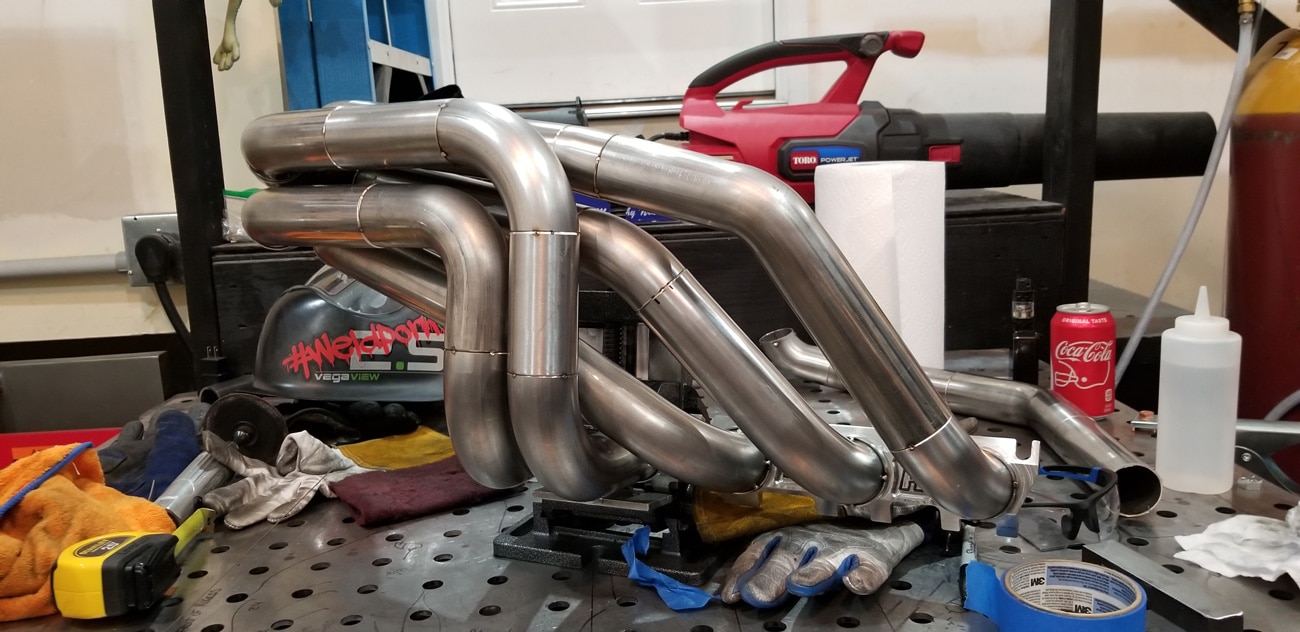

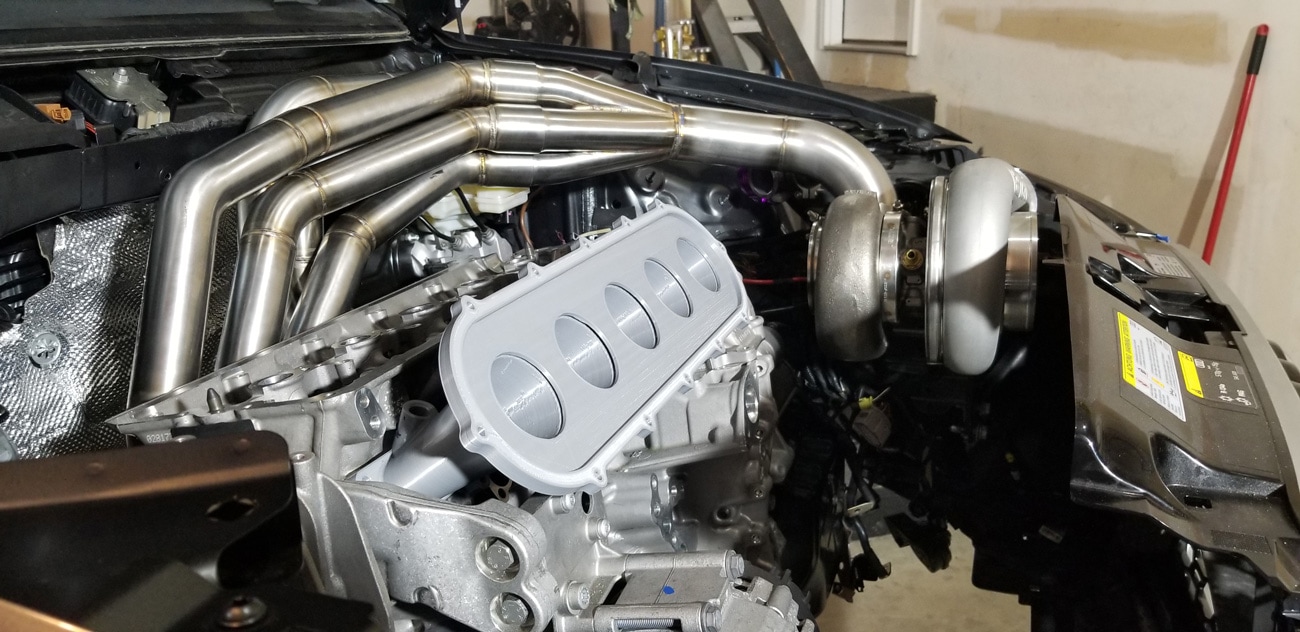

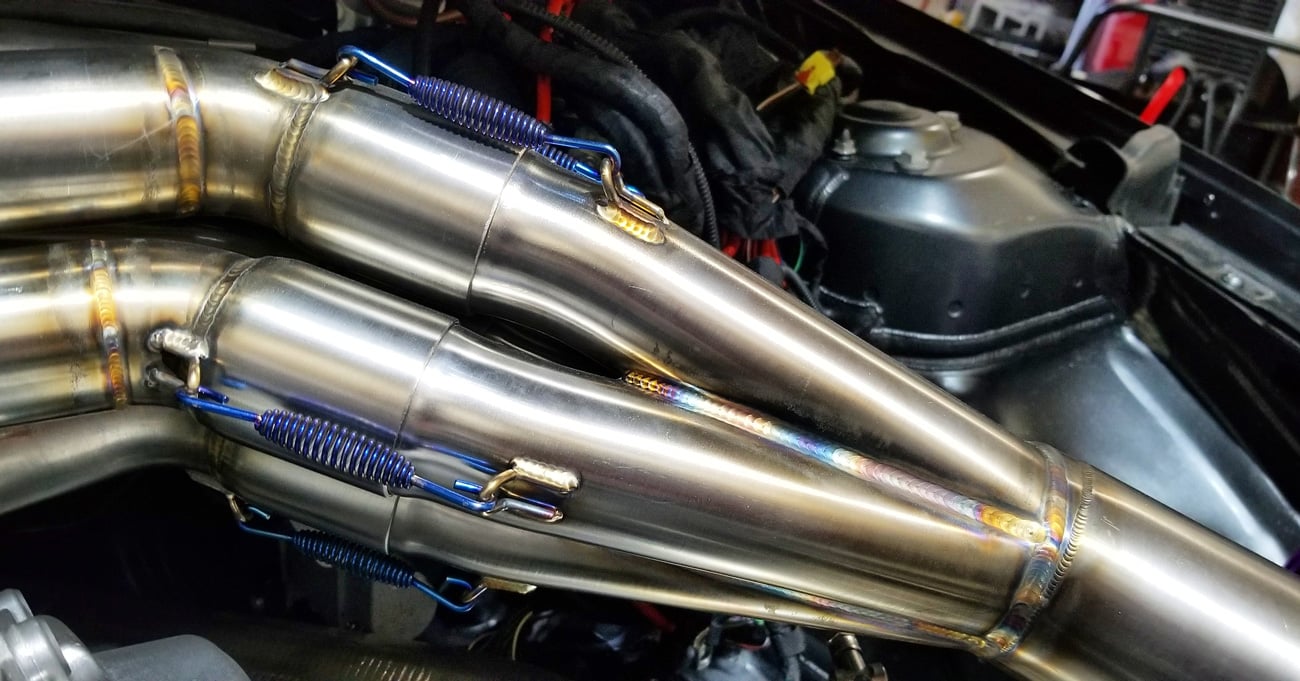

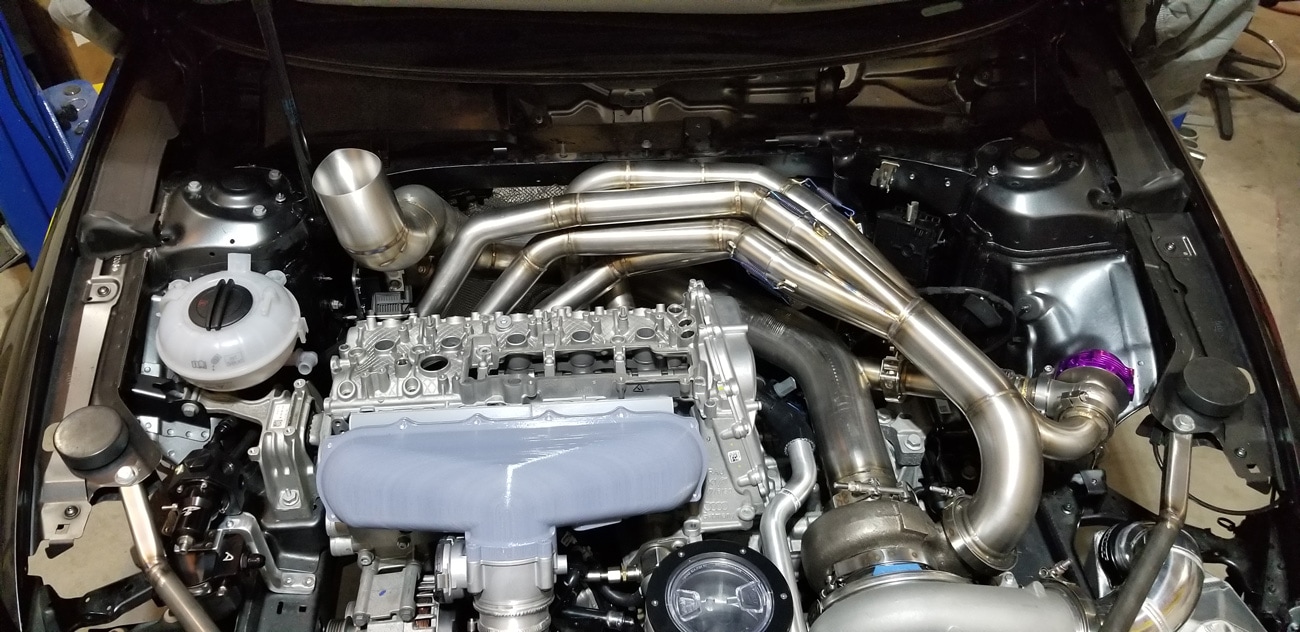

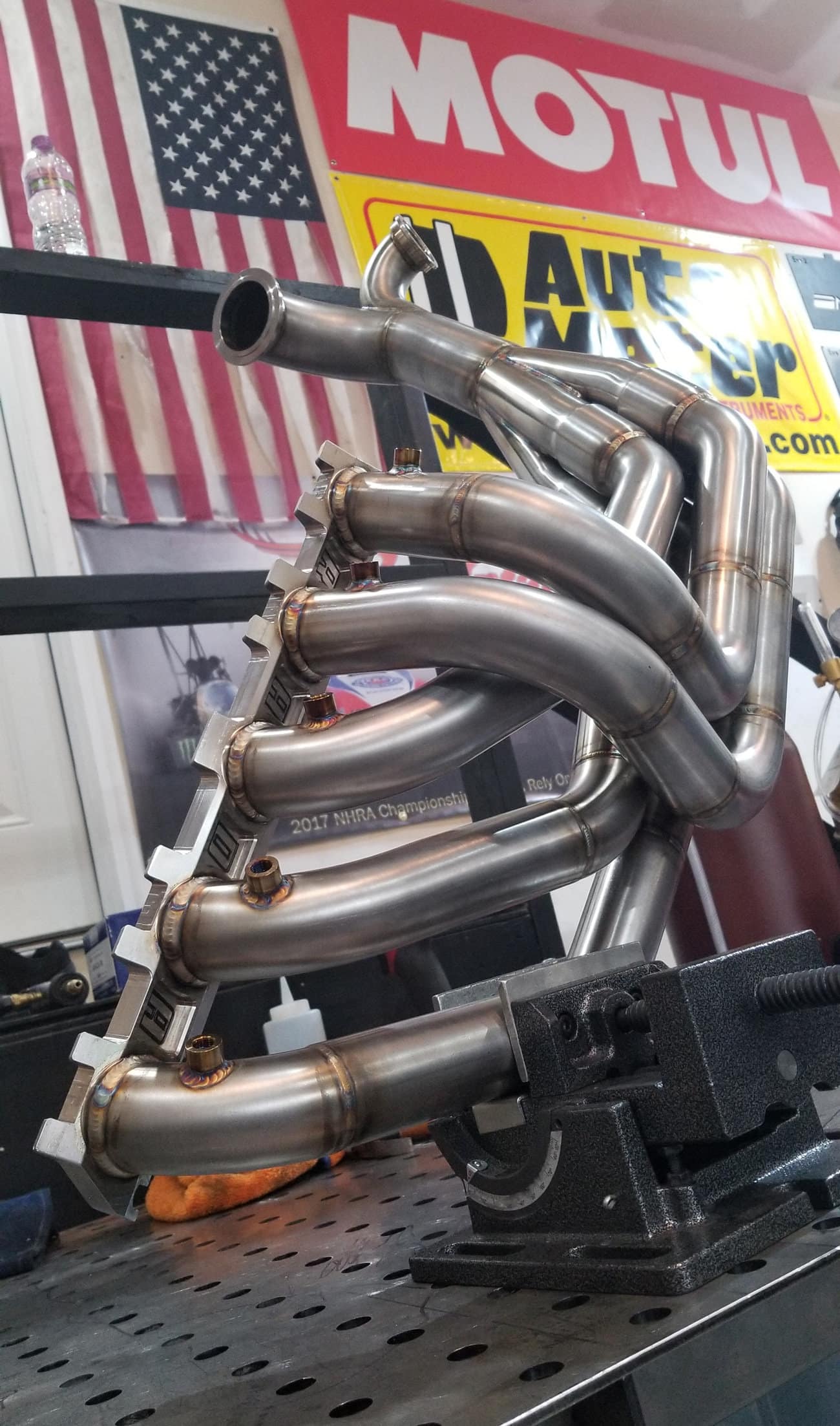

- Rada Drag Turbo Manifold Dual Slip Thin Wall Stainless with Rada Port Matched Head Flange

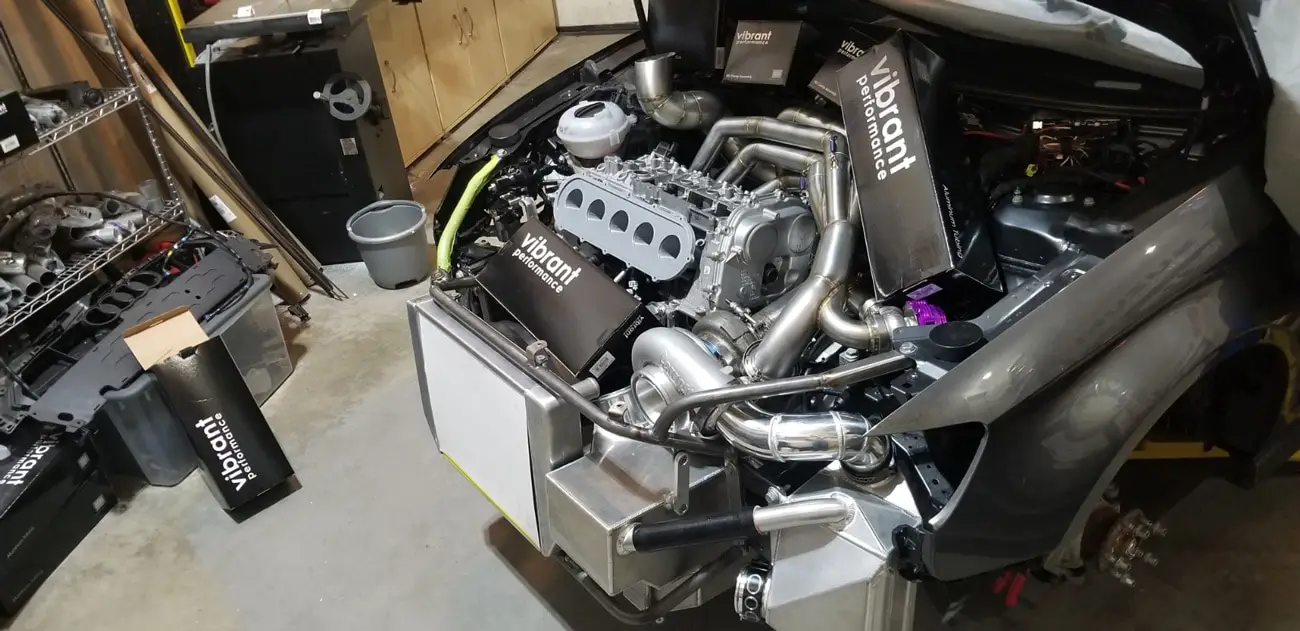

- Rada Custom Air-Water Intercooler Using Twin Garrett 750HP Cores

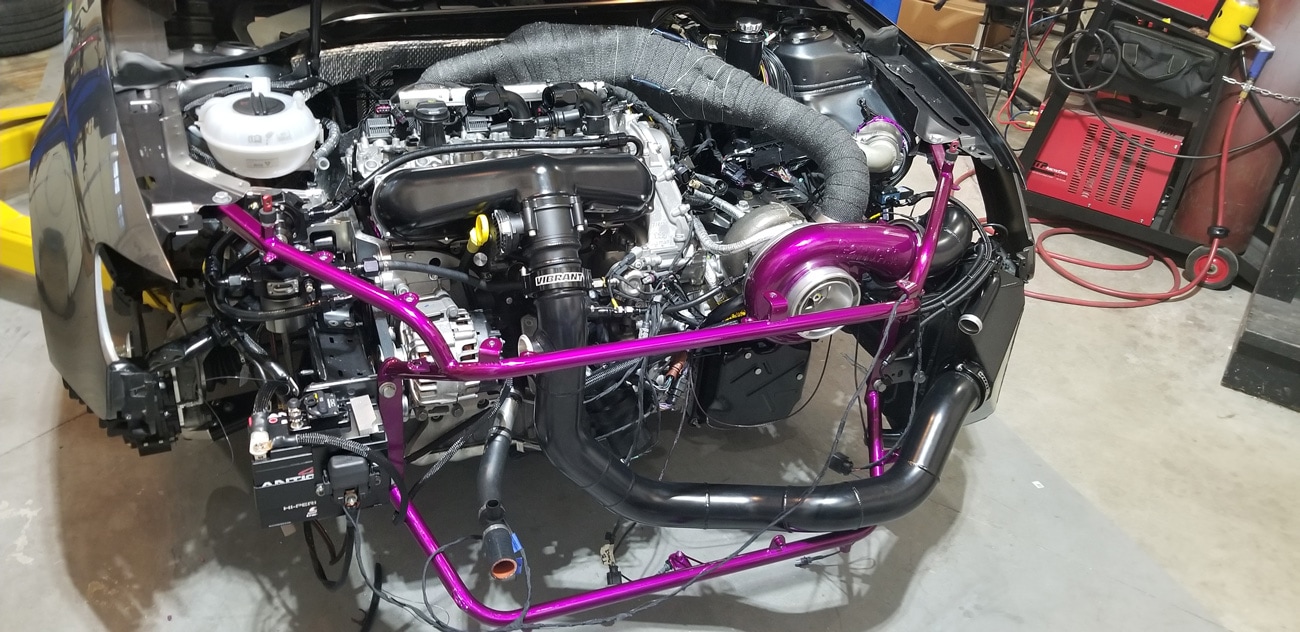

- Rada Drag Chromoly Front Core Support
- Rada Big Power PCV Tank

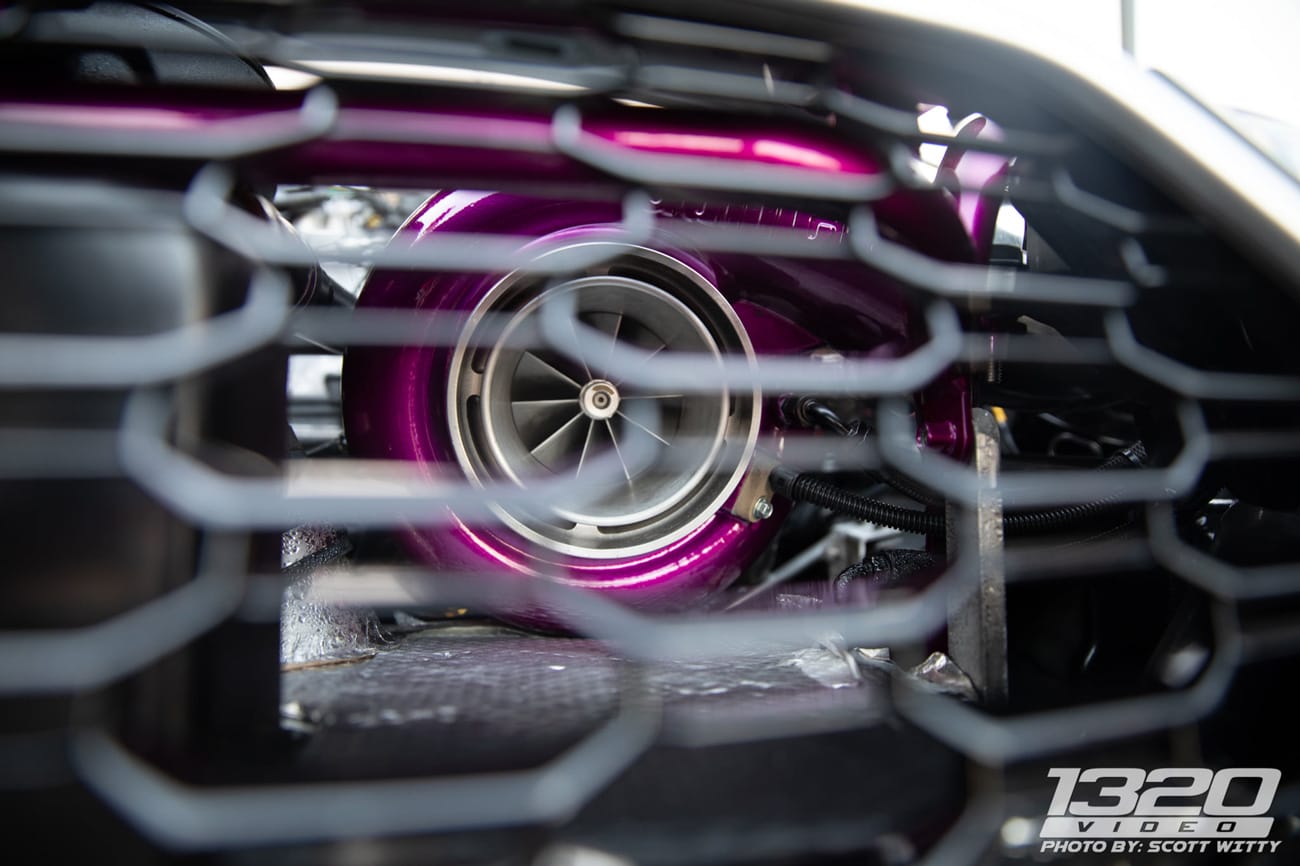

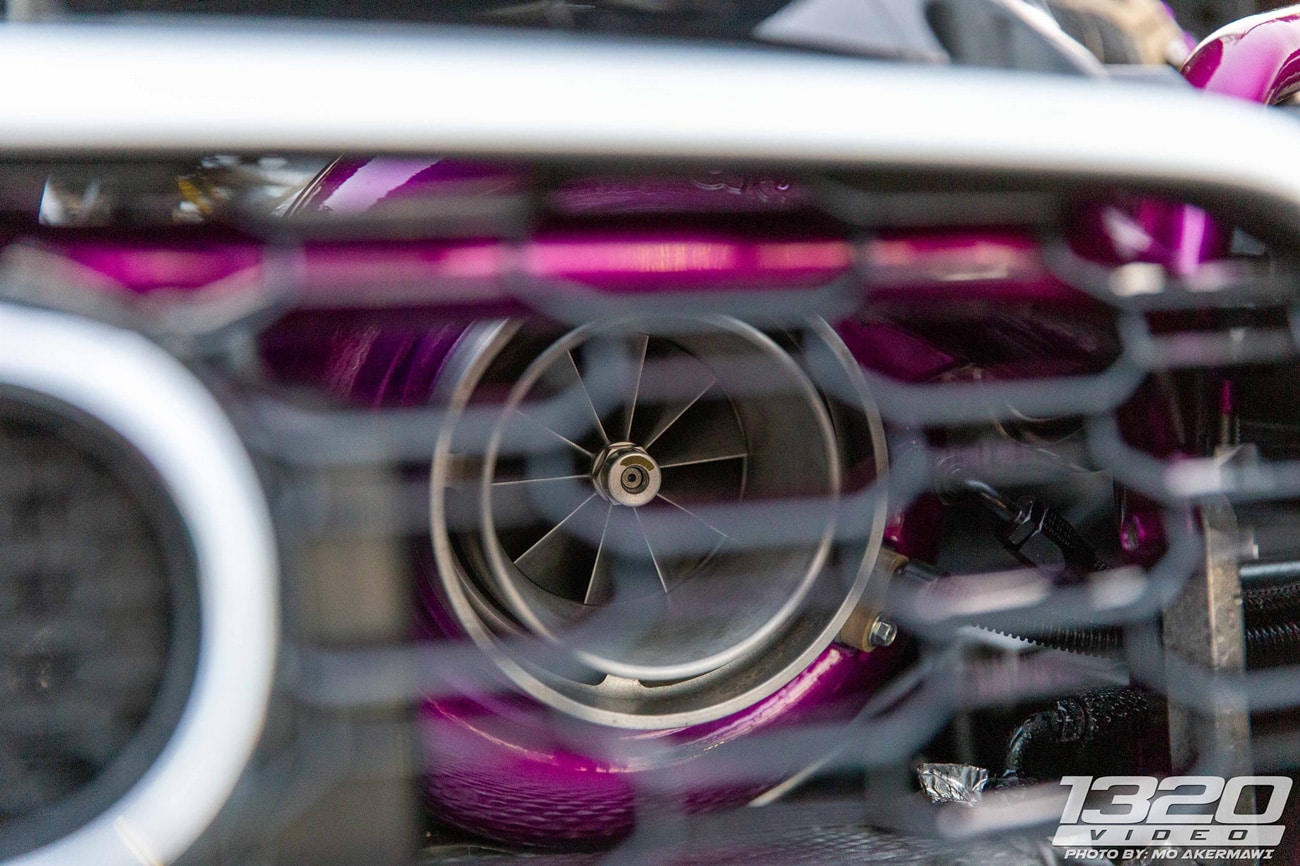

- Garrett G42-1450 Turbocharger
- Maven Turbo Mounting Block
- TiAL Wastegate / Blowoff Valve
- 82mm Throttle Body

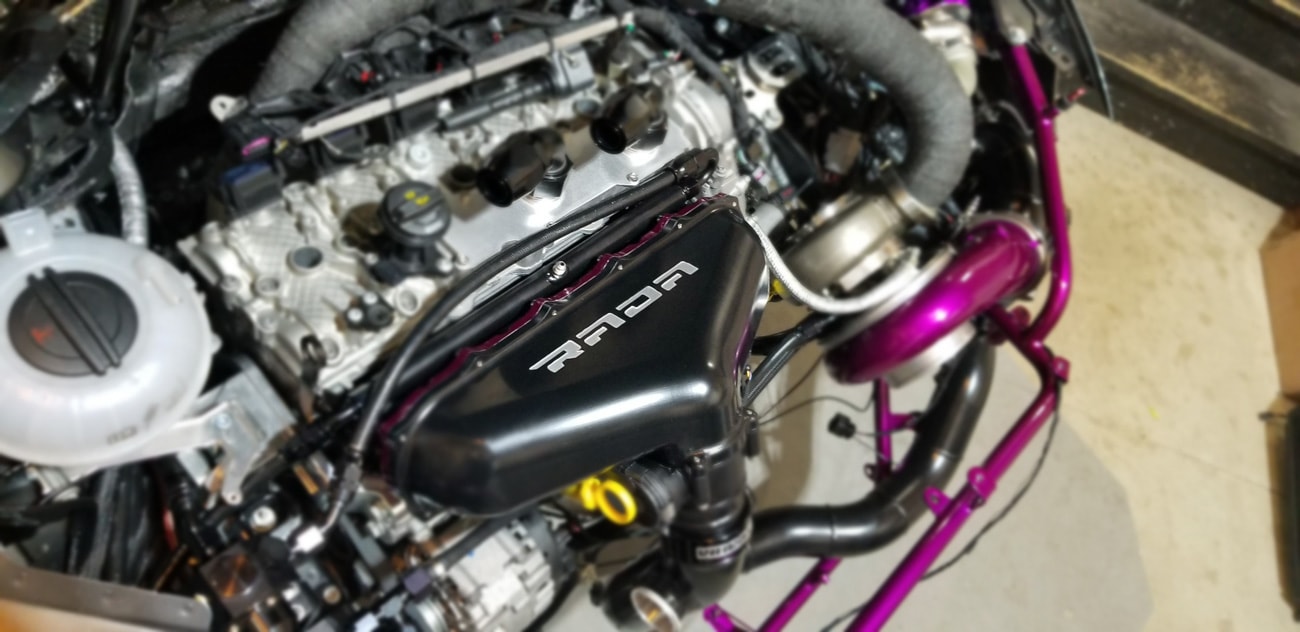

- Rada Billet Center Feed Drag Intake Manifold
- Vibrant HD Clamps

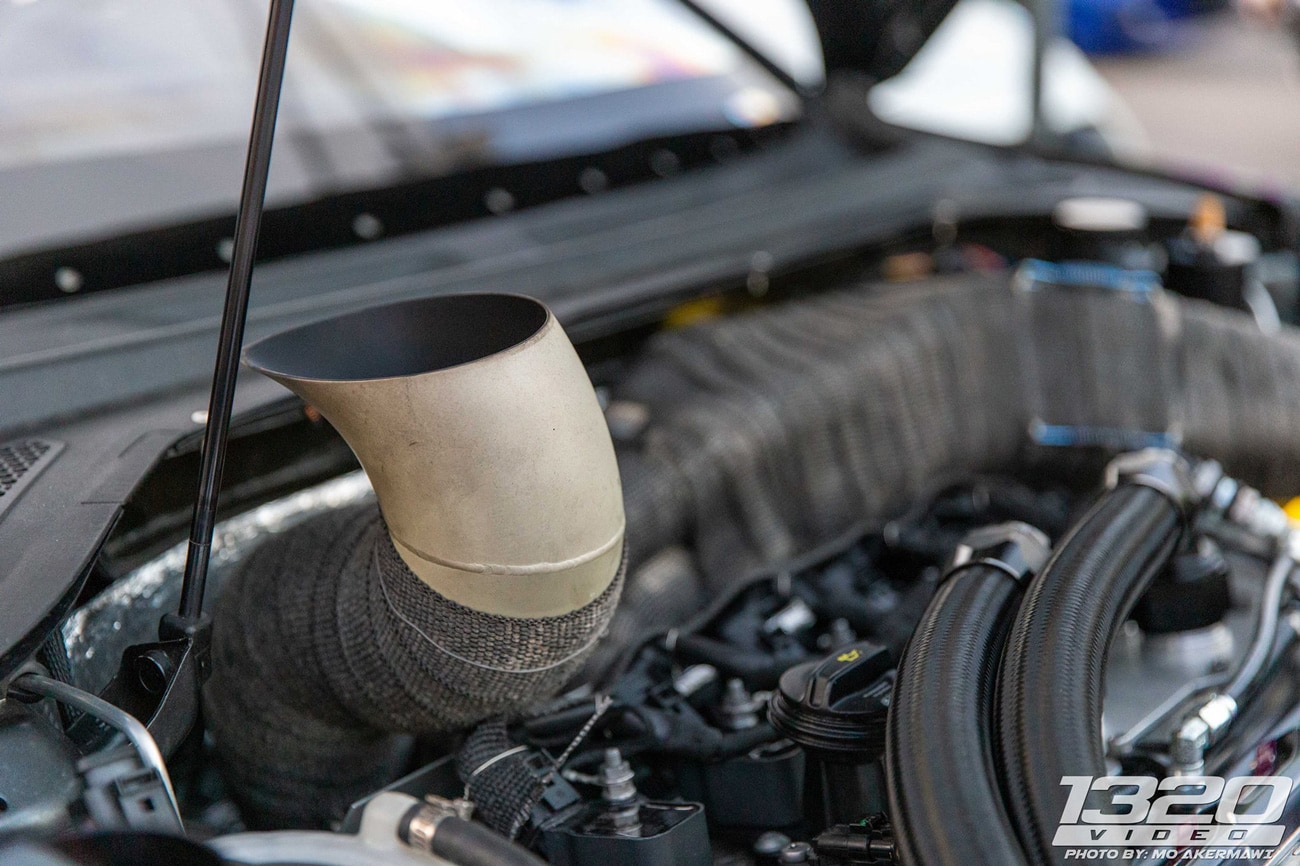

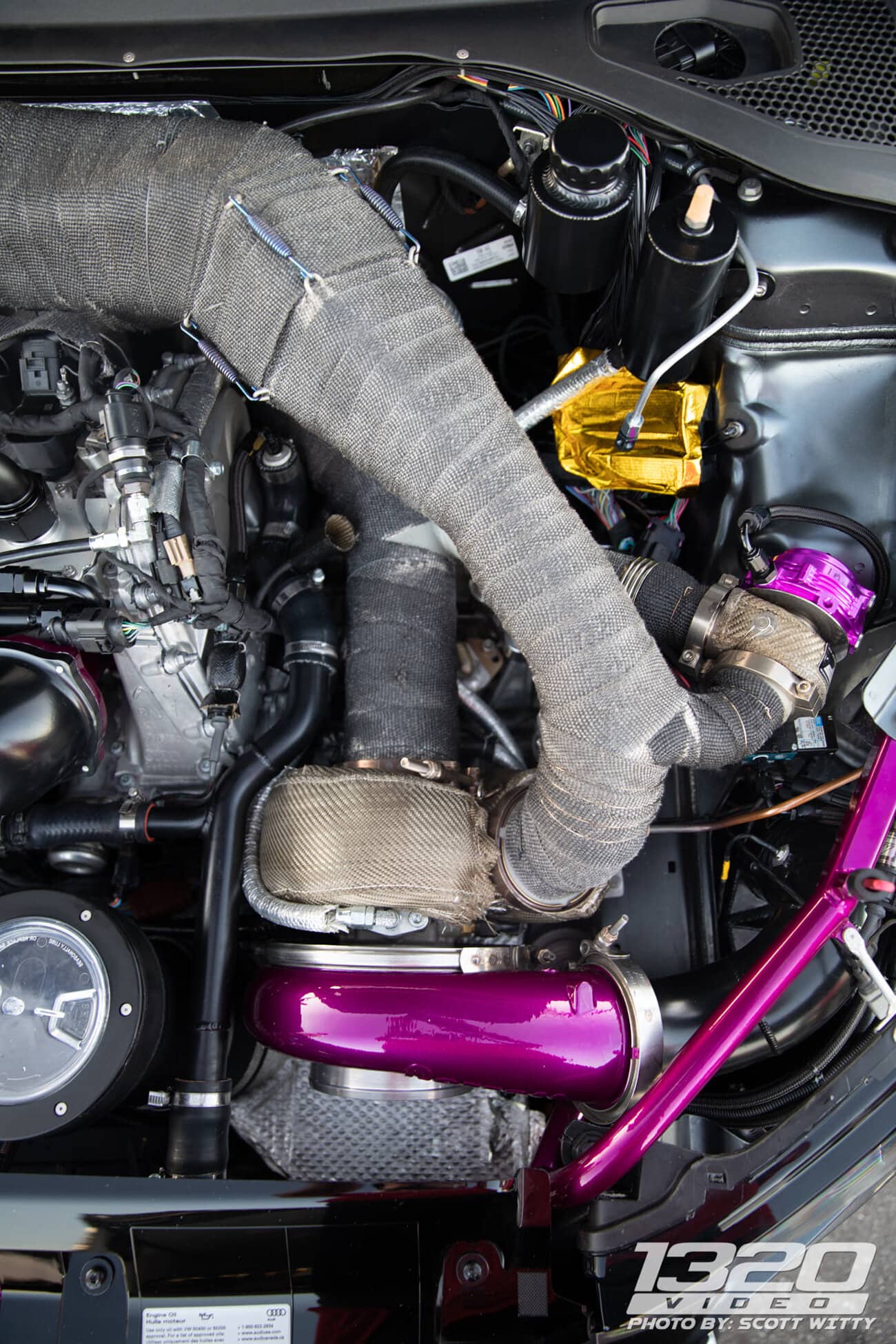

- Turbomotiv Turbo Blanket

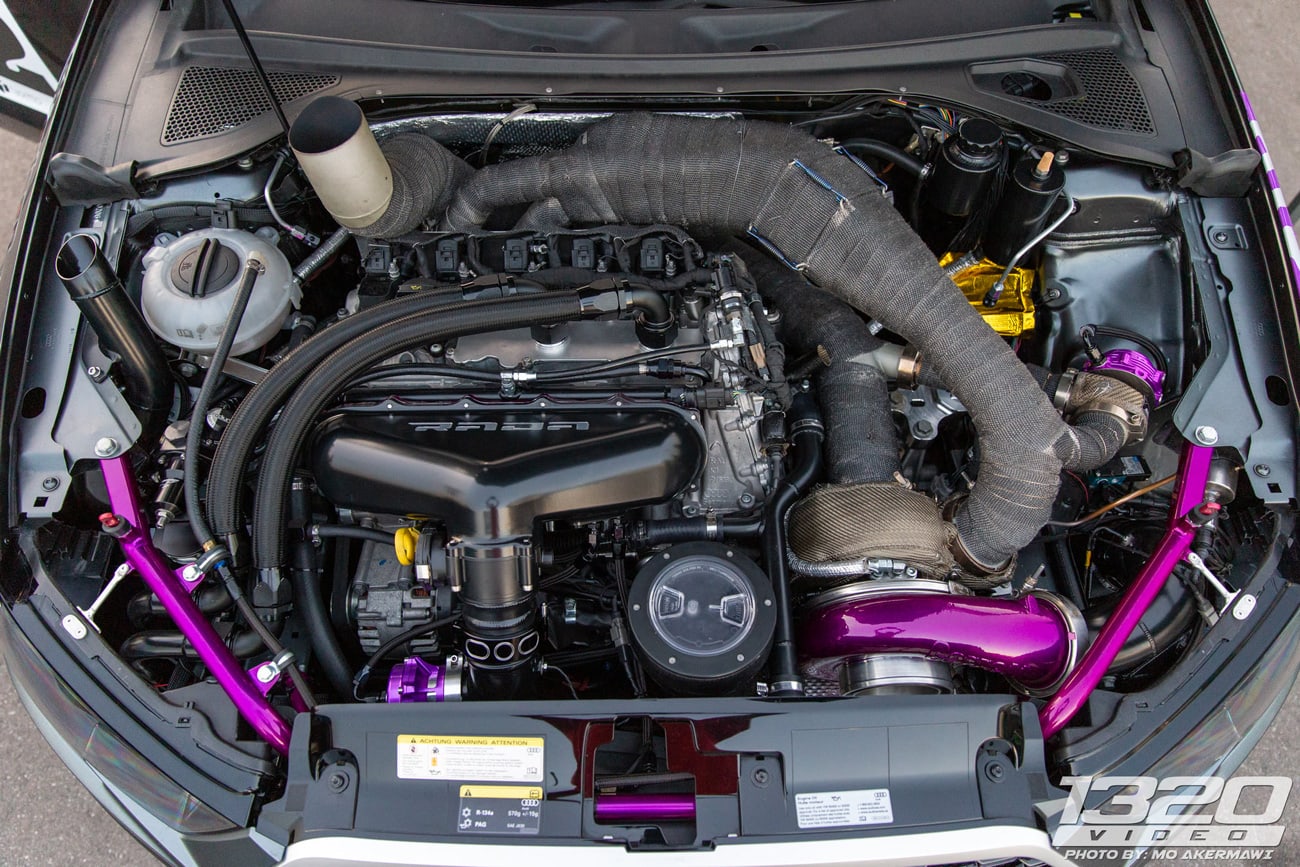

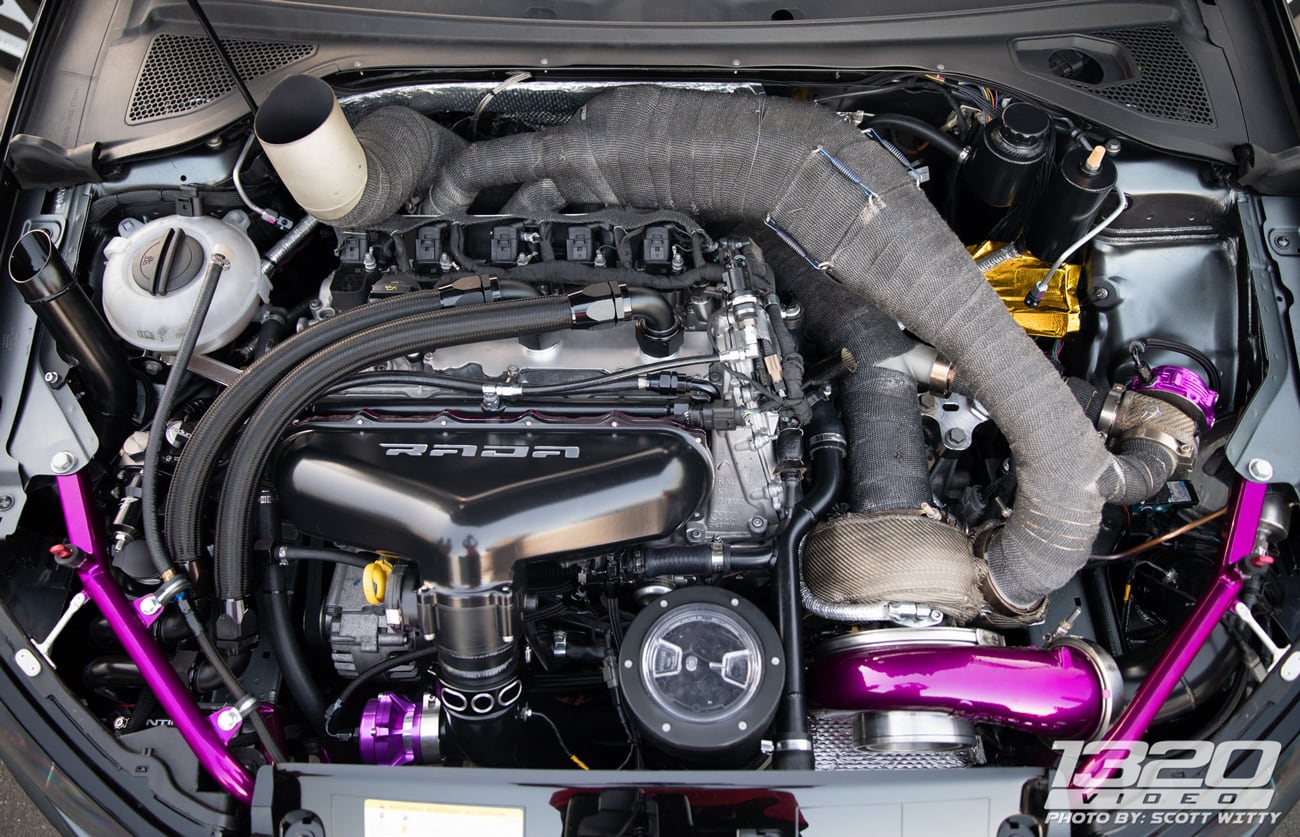

Engine
- Rada / SCG Dry Sleeving / Sealing System
- Rada / SCG Spec Forged Pistons
- Rada / SCG Spec Connecting Rods
- Rada / SCG Billet Main Caps
- Rada / SCG Spec Large Head Studs
- Rada / SCG Race Cylinder Head (Hand Port, Ferrea Valvetrain, Alloy Race Seat)
Electronics / Fueling
- Syvecs RS3 PNP Kit from BrCalibration
- Individual EGTs, T1 Pre / Post Manifold Air Temp, Back Pressure, Turbo Speed, 6 Wideband Options, 7 Bar Map Sensor
- Injector Dynamics ID2600-XDS Port Injectors
- Injector Dynamics Fuel Filter
- Twin E5LM Fuel Pumps with Alpha Performance Controllers
- Rada 6 Gallon Drag Fuel Cell
Drivetrain / Brakes / Suspension
- Dodson Motorsports Clutch
- Rada Carbon / Carbon Front Drag Brake Kit
- Rada Rear Drag Rotors
- Driveshaft Shop Front and Rear Axles
- Driveshaft Shop Prop-Shaft (in Development)
- Wavetrac Differential
- Verkline Front and Rear Subframes
- Verkline Anti-Squat Kit
- Verkline Control Arms
- 17″ Wheels with Hoosier DR2 for Radial Runs
- 15″ T1 / Belak Beadlock Drag Pack with MT Slicks
Misc / Safety
- Rada 6 Window Lexan Kit

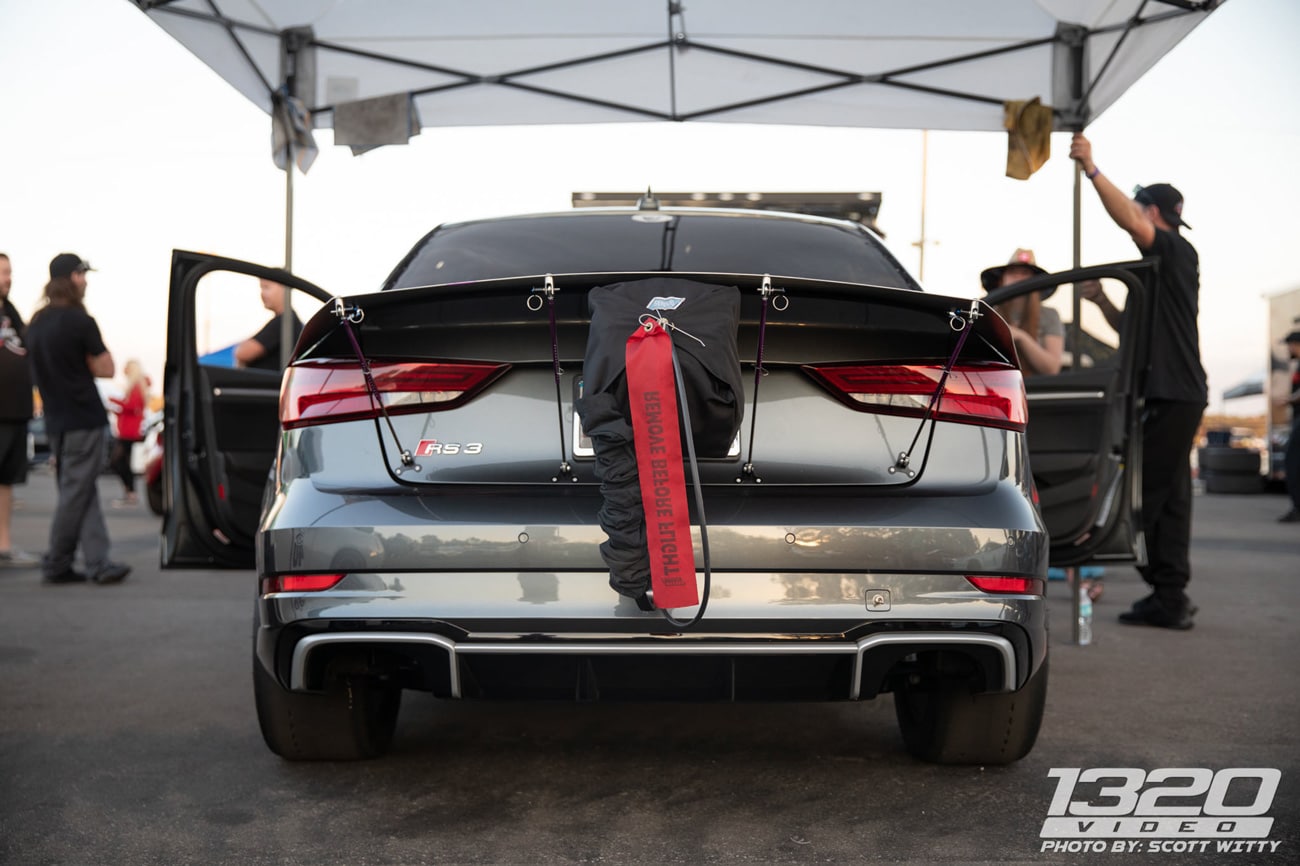

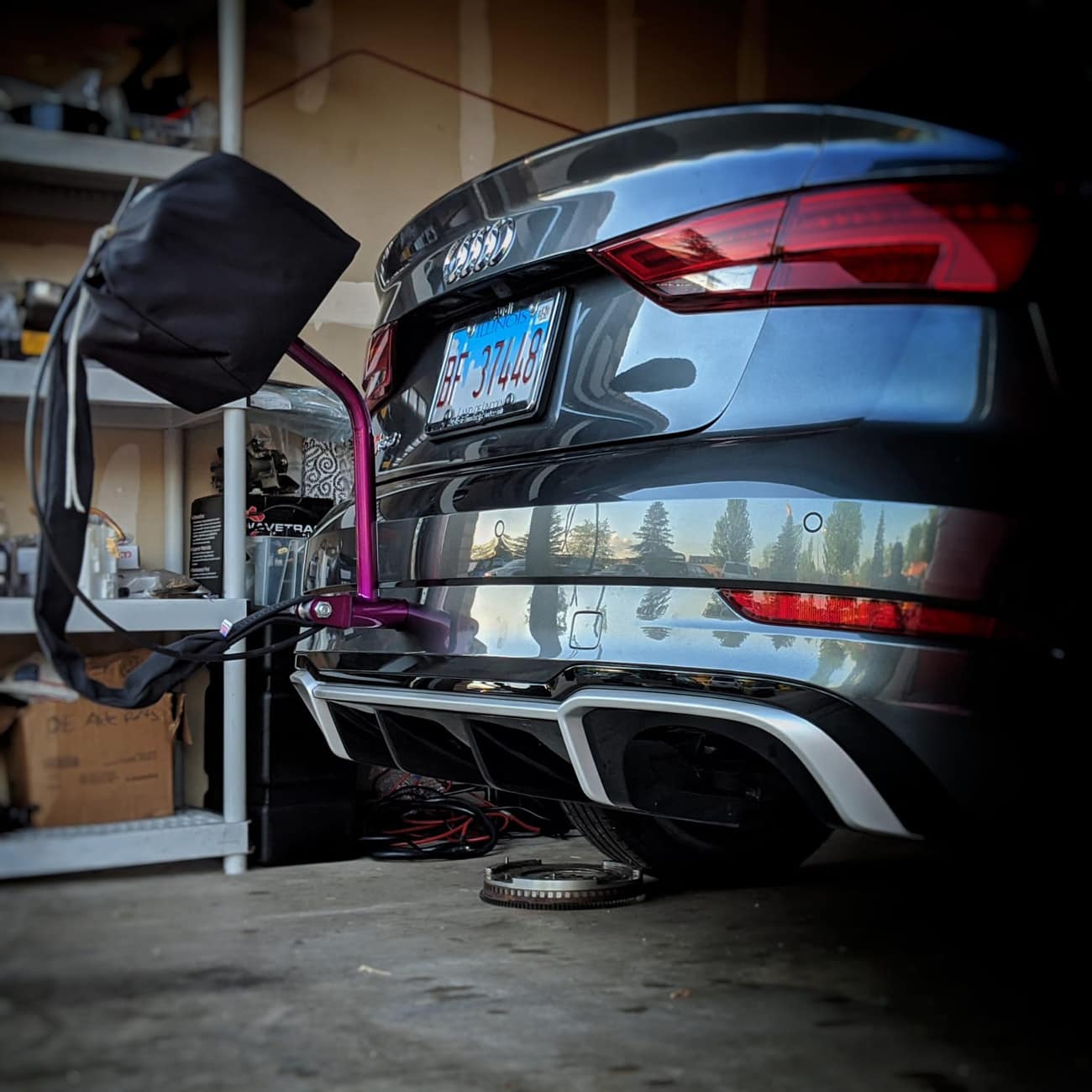

- Rada Drag Chute Kit
- Rada 8.50 Cert Chromoly Cage
- Rada Drag Wing Kit
- 4 Nozzle / 10lb Fire Suppression System
- Rada Carbon Roof (in Development)
- OMP Seat
- Racequip 6 Point HarnessRada sub-bar
